| 电源供应 |
14 - 30 VAC/DC |
| 供应电流 |
60mA max @ 24 VDC, (no water) |
| 工作温度 |
-40°C - 85°C (-40°F - 185°F) |
| 报警 |
Form C relay, rated @ 2 amps
@ 250 VAC / 30 VDC (负载电阻) |
| Cable Rating |
Plenum rated - CL2P (UL) |
| 外壳 |
ABS with hinged lid and gasket、IP65 (NEMA 4X)、UL94-5VB |
| 尺寸 |
145(L) x 100(W) x 64(H) mm |
| 安装高度 |
98.43 mm (Max.) |

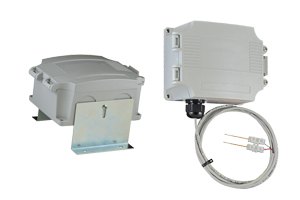

| legs (AWL100) |
88.90 mm (Min.) |
| 测量模式： |
1、检测到水(导体液体)
2、断电
3、内部故障
(监测到上述任一情况即发出警报) |
可测量与无法测量之流体 |
 |
Fluids that can be detected |
 |
Fluids that can't be detected |
．City water (自來水)
．Sea water (海水)
．Copper sulfate solution (硫酸銅溶液)
．Weak acid (弱酸)
．Weak base (弱鹼)
．Household ammonia (家用氨水)
．Water & glycol mixture (水和乙二醇混合物)
．Wet soil (潮濕土壤）
．Coffee(咖啡) |
．Pure water (純水)
．Gasoline (汽油)
．Oil (油)
．Brake fl uid (制動液)
．Alcohol (酒精)
．Ethylene glycol (乙二醇)
．Para nffin (石蠟)
．Dry soil (乾燥的土壤)
．Whiskey (威士忌酒) |
|
