Product icon
(click small map to see larger image) |
Product Type / Name
|
Product Description |
Catalog / Instructions Download |
Certification |
|
 |
TRM20
Paperless recorder
(Touch) |
 |
Intuitive touch panel control, measurement points: 6, 9, 12-channel |
|
A variety of input: voltage / current / thermocouple (optional), can be used with SD card (2G memory card) |
|
Interface:RS-485 |
|
5.7-inch TFT LCD display panels (256 colors of high color saturation) |
|
Size：150x144x208 mm |
|
|
|
|
 |
TRM10C
Recorder
(Pen / Dot )
|
|
Multiple input (4 ~ 20mA of) and range to choose from |
|
Accuracy:± 0.3％FSO(Max).Interface:RS-232/RS-485(optional) |
|
IP65 dust and waterproof rating. Applicable to food and other harsh environment electrical furnace |
|
Measurement points: 1, 2 pens, 6 RBI |
|
Size：144x144x150mm，weight:1.5kg |
|
Hot Type:TRM10066C TRM1001C TRM1002C |
|
|
  |
|
 |

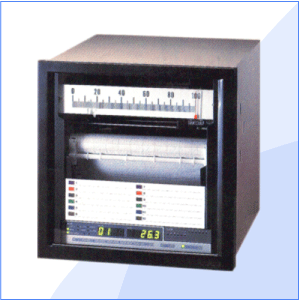

RM18L
Recorder
(Pen / Dot )
|
|
Measurement points: 1,2,3,4 pen, 6,12,24,30 RBI |
|
Simple front panel operation type, 58 kinds of input options, can be planned range |
|
Time printing and a variety of measurement units, wide-range input 85 ~ 264V AC power supply voltage |
|
Accuracy:±0.5％FSO,Interface：RS-232/RS-485(optional) |
|
Size：288x288x340 mm |
|
|
|
|
 |
Chart Paper
|
|
Pen / Dot, dedicated recording paper
Nippon / Made in Taiwan ,record length of up to 16M |
|
Japanese original imported
NO.HZCGA0105EL001
Effective width：100mm
Length：16M
Applicable models:TRM10C、RM10C... |
|
Made in Taiwan
Type：There are values marked
Effective width:100mm
Length：16M
Applicable models:TRM10C/RM10C... |
|
Made in Taiwan
Type：No values marked
Effective width:100mm
Length：16M
Applicable models:TRM10C/RM10C... |
|
|
|
