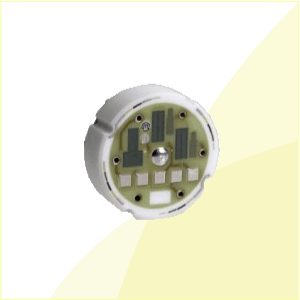

ME501
Piezoresistive Pressure Sensor |
 |
Pressure ranges : 0~0.5bar to 0~50bar |
|
Pressure measurement : absolute / gauge / sealed gauge |
|
Diameter : 18.00mm |
|
Structure : flush membrane |
|
Thermal compensation : ≤ ± 0.04 %FS/K |
|
Signal output : differential signal mV/V |
|
|
|
|
 |

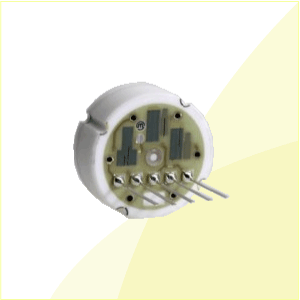

ME505
Piezoresistive Pressure Sensor |
|
Pressure ranges : 0~100bar to 0~600bar |
|
Pressure measurement : sealed gauge |
|
Diameter : 18.00mm |
|
Structure : flush membrane |
|
Thermal compensation : ≤ ± 0.04 %FS/K |
|
Signal output : differential signal mV/V |
|
|
|
|
 |

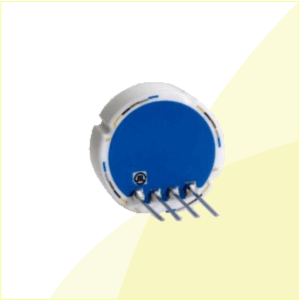

ME662
Piezoresistive Pressure Sensor |
|
Pressure ranges : 0~2bar to 0~400bar |
|
Pressure measurement : gauge |
|
Diameter : 18.00mm |
|
Structure : monolithic |
|
Thermal compensation : ≤ ± 0.075%FS/K no PTC |
|
Signal output : differential signal mV/V |
|
|
|
|
 |
511K
Piezoresistive ceramic pressure sensor |
|
Pressure ranges : 0~0.5bar to 0~600bar |
|
Pressure measurement : absolute / gauge / sealed gauge |
|
Imax : 4 mA |
|
Bridge resistance : 10 kΩ ± 20 % |
|
Supply voltage : ≤ 30 VDC stabilised |
|
Features : Excellent chemical resistance, temperature compensated, easy to assemble |
|
Applications : Pneumatics, Hydraulics, Plant and mechanical engineering, Automotive engineering, Medical engineering
|
|
|
|
|
 |

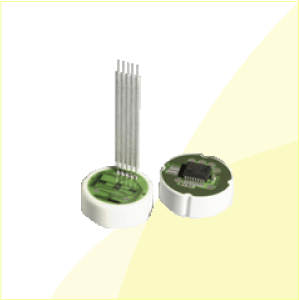

8001
OEM Pressure Sensor |
|
Pressure ranges : 0~1.6bar to 0~250bar |
|
:Signal output : 2.3...3.5 mV/V |
|
Supply voltage : max. 20 VDC |
|
Bridge resistance: : 10 kΩ ±30 % |
|
Features : Ceramic sensor, Resistant to aggressive media, High resistance to over pressure, Relative or absolute pressure sensors, Customised options available, Excellent cost-performance ratio |
|
Applications : Shipbuilding,
Engine manufacturing,Railways,
Machine tools,Hydraulics,
HVAC,Refrigeration,Process technology,Water treatment,Automotive industry,Test benches,Ex,Food Industry,Autoclaves |
|
|
|
